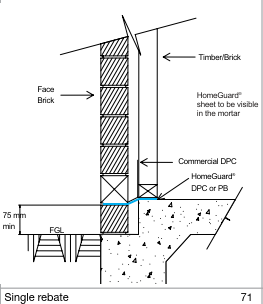

75mm Inspection Zone
Establishment of a 75mm termite inspection zone around building perimeters.
Technical Insights into
Homeguard's Barrier System
Delve into the technical specifics of Homeguard’s Termite Protection System. Designed for architects, builders, and engineers, adaptable to pre-cast panels, bearers and joists, and complex construction joints.
Sectional Details
Homeguard’s unique composition offers robust protection. Its multi-layered membrane blocks concealed termite ingress, ensuring structural integrity. Each layer serves a specific function—repelling termites and providing a durable physical barrier.
Custom Integration
Given its versatility, Homeguard can be customized to fit any architectural detail. Whether it’s a challenging retrofit or a new build, the system is tailored to provide optimal protection.
Perimeter
Perimeter Installation targets the critical junction where the building meets the ground, providing a focused barrier that prevents termites from entering through the edges of the structure.
Bearers and Joists
Termite protection at the intersection of bearers, joists, and the building perimeter.
Cladding
Integration of termite barriers with perimeter cladding installations.
As DPC
Using Homeguard as a damp-proof course, ensuring continuous termite protection.
Cladding Weatherboard
Termite barrier integration beneath weatherboard cladding at the perimeter.
Concrete Block
Barrier placement details for perimeter walls built with concrete blocks.
High Paving
Protective measures around high paving adjacent to the building perimeter.

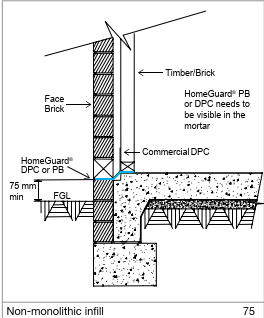

In Fill Slab
Ensuring termite protection with in-fill slab perimeters.
Lightweight Concrete Panel
Termite barrier details for lightweight concrete panels at the perimeter.
One Brick Rebate
Installation details for a standard one-brick rebate scenario at the perimeter.
One Brick Rebate (No Step)
A no-step variation of the one-brick rebate perimeter detail.
Paving Tiles
Proper barrier transition from perimeter to paving tile surfaces.

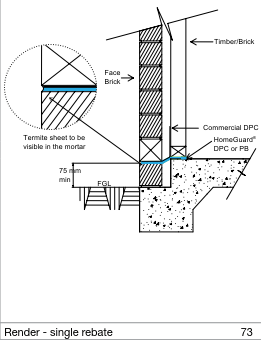

Rendered Walls
Integration of termite barriers on rendered perimeter walls.
Tilt Panel
Homeguard installation details for tilt panel construction at the perimeter.
Penetrations
Areas around utility penetrations, such as pipes and conduits, are potential entry points for termites. Homeguard provides specialised solutions to secure these vulnerabilities.
Penetration Conduit in Perimeter
Termite barrier sealing around conduit penetrations at structure perimeters.
Penetration Waffle Pod
Termite barrier application in waffle pod construction penetrations.
Penetration
General termite protection approach for various structural penetrations.
Construction Joints
Construction joints, where different sections of concrete meet, can be potential entry points for termites. Homeguard addresses this by creating a seamless barrier that can integrate with existing buildings.
Construction Joint Existing Footing
Termite protection at a construction joint adjoining an existing footing.
Construction Joint Garage
Termite barrier application within a garage construction joint.

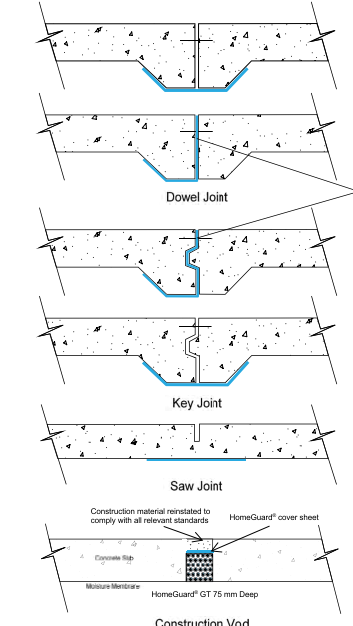

Construction Joints
Overview of termite barrier solutions across various construction joints.
Internal Step Down
Termite protection measures for an internal step-down detail in the slab.
Under Slab
Full Under-slab Installation provides comprehensive protection by covering the area under a concrete slab. This method involves laying out the Homeguard membrane before the slab is poured, ensuring coverage of vulnerable areas.
Complete Under-slab Protection
Comprehensive termite barrier application beneath a concrete slab for full coverage.
Retaining Wall
The Homeguard system is designed to work with retaining walls, effectively blocking concealed termite access and preserving the integrity of architectural designs.

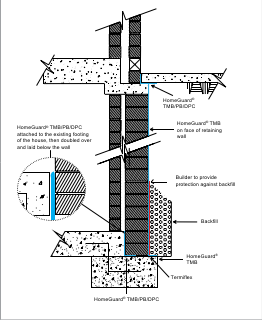

Retaining Wall Exterior
Termite barrier strategies for exterior retaining walls connected or adjacent to structures.
Other
Includes various other termite protection applications such as strapping, isolated piers, and brick piers on both footing and slab.
Strapping
Termite protection methods involving strapping components in building structures.
Brick Pier on Footing
Termite protection system installation around a brick pier with a footing base.
Brick Pier on Slab
Integration of termite barrier around a brick pier positioned directly on a concrete slab.
